DHDLF2406APZA

DHDLF2406APZA Overview

The DHDLF2406APZA is a high-performance 16-bit microcontroller (MCU) from Texas Instruments, designed for a wide range of embedded applications. This MCU features a C2xx DSP core processor, offering robust processing capabilities at a speed of 40MHz. It is equipped with 64KB of FLASH program memory (32K x 16) and 5K x 8 RAM, providing ample storage for complex applications. The DHDLF2406APZA operates within a supply voltage range of 3V to 3.6V and supports a variety of peripherals, including POR, PWM, and WDT. It also includes 16-channel 10-bit A/D converters, enhancing its data acquisition capabilities. The MCU is housed in a 100LQFP package and is suitable for surface mount applications. With connectivity options such as CANbus, SCI, SPI, and UART/USART, the DHDLF2406APZA is well-suited for industrial and automotive applications.

DHDLF2406APZA Features

• Core Processor: C2xx DSP core, delivering high performance and efficiency.
• Program Memory: 64KB FLASH (32K x 16), providing ample space for complex applications.
• RAM Size: 5K x 8 RAM, ensuring efficient data handling.
• Speed: 40MHz, enabling fast processing capabilities.
• Voltage Range: 3V to 3.6V, ensuring compatibility with various power supplies.
• Peripherals: Includes POR (Power-On Reset), PWM (Pulse Width Modulation), and WDT (Watchdog Timer).
• Data Converters: 16-channel 10-bit A/D converters for precise data acquisition.
• Connectivity: Supports CANbus, SCI, SPI, and UART/USART for versatile communication.
• I/O Pins: 41 I/O pins, providing extensive connectivity options.
• Mounting Type: Surface mount, ideal for compact and space-efficient designs.
• Oscillator Type: Internal oscillator, reducing external component requirements.

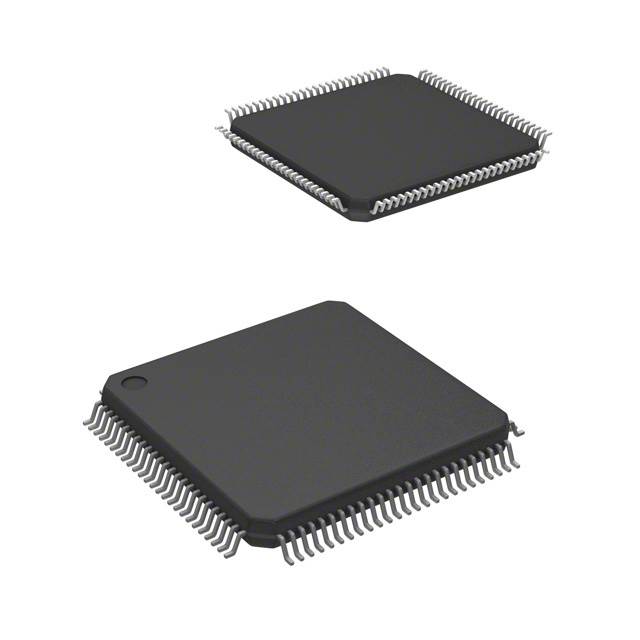

• Package: 100LQFP, offering a robust and reliable housing.

DHDLF2406APZA Applications

The DHDLF2406APZA is ideal for a variety of applications, including:

• Industrial Automation: Its robust processing capabilities and extensive connectivity options make it suitable for controlling complex industrial processes.
• Automotive Systems: The MCU's high performance and reliability are well-suited for automotive applications, such as engine control units and advanced driver assistance systems.
• Consumer Electronics: The DHDLF2406APZA can be used in high-end consumer electronics, providing efficient processing and data handling.
• Medical Devices: Its precision and reliability make it suitable for medical devices requiring accurate data acquisition and processing.

DHDLF2406APZA Development Tools

Texas Instruments offers a range of development tools to support the DHDLF2406APZA, including:

• Code Composer Studio: A comprehensive development environment for writing, debugging, and optimizing code.
• Evaluation Modules: Hardware modules that allow developers to test and prototype applications quickly.
• Software Libraries: A collection of pre-written libraries and drivers to simplify development and reduce time-to-market.

DHDLF2406APZA Advantages

• High Performance: The C2xx DSP core and 40MHz speed ensure efficient processing of complex tasks.
• Robust Memory: 64KB FLASH and 5K x 8 RAM provide ample storage for large applications.
• Versatile Connectivity: Support for CANbus, SCI, SPI, and UART/USART enables seamless communication with various peripherals.
• Precision Data Acquisition: 16-channel 10-bit A/D converters ensure accurate and reliable data acquisition.
• Reliability: The DHDLF2406APZA is designed for reliability, making it suitable for critical applications.
• Compliance: The MCU is REACH unaffected and RoHS3 compliant, ensuring it meets environmental and regulatory standards.

Conclusion of DHDLF2406APZA

The DHDLF2406APZA from Texas Instruments is a versatile and high-performance 16-bit microcontroller, ideal for a wide range of applications. Its robust processing capabilities, extensive memory, and versatile connectivity options make it a reliable choice for industrial, automotive, and consumer electronics applications. With comprehensive development tools and support from Texas Instruments, the DHDLF2406APZA offers a reliable and efficient solution for embedded systems development.
